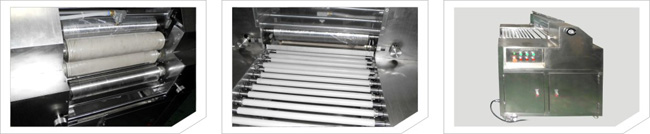

1. This machine is a high-precision roller coating machine that can precisely coat products on one or both sides. It is mainly aimed at the precision of photosensitive oil and various inks on the surface of PCB double-sided boards, aluminum plates, steel plates and flexible boards. coating.

2. The machine uses rubber wheels imported from Japan, which are resistant to friction, solvents, uniform coating, and long service life.

3. The oil supply system of this machine uses a Taiwanese oil supply pump to deliver ink or varnish to the top of the rubber wheel. The excess varnish is returned to the storage barrel through the oil tank on both sides of the coating wheel and can be recycled.

4. Coating thickness: 0.01-0.025mm

5. The required thickness of the sheet: 0.05-5mm

6. Conveying speed: 0-28m/min

7. The coating wheel of this machine is dynamically balanced, and the coating is accurate. It is equipped with a high-precision dial indicator to ensure more accurate coating.

8. Effective specifications of mechanical coating: 400mm 600mm 900mm 1300mm
